THE NIGHT THE GRID DIED: A SURVIVAL SCENARIO
The digital clock blinked 12:00, then nothing. The hum of refrigerators, water pumps, and background electrical noise that we've all become numb to – silenced in an instant. Three blocks away, the transformer had finally surrendered to the ice storm, erupting in a blue-green flash that momentarily turned night into day.
The neighbor's backup generator sputtered pathetically for thirty minutes before choking on cheap gas and dying. Their "emergency prep" – good for heating up canned beans and charging phones – collapsed under the weight of actual survival demands.
But in my workshop, the transition was seamless. The 48V battery bank didn't even flinch as the inverter took over, routing power through breakers that hadn't seen grid electricity in 18 months. While the neighborhood descended into darkness and panic, my pumps kept running, my communication systems stayed alive, and the power tools in my shop remained ready for whatever repairs the storm would demand.
The difference wasn't luck – it was voltage. It was preparation. It was understanding that freedom means building systems that don't fold when tested.
THE COMFORT ZONE: LIVING WITH HALF-MEASURE POWER
You built your first off-grid system with 12V components because that's what the RV guys use. Maybe you upgraded to 24V when your power demands grew. You cobbled together a system that works most days – as long as you don't run too many appliances at once or need serious power for your workshop.
But deep down, you've always known it's a compromise. When your grinder trips the inverter, when voltage drop makes your lights dim at the end of a long cable run, when you calculate how many more panels and batteries you'd need just to run basic tools – you feel the limitations of your system in your bones.
And let's be brutally honest – the "experts" at big box stores and RV shows have been feeding you half-truths. They sell 12V systems because they're simple and cheap, not because they're optimal for serious off-grid living. They design for weekenders and glampers, not for people building their own damn empires.
THE DISRUPTION: WHEN YOUR SYSTEM HITS THE WALL
For me, it was the welder. I'd spent three years building my off-grid setup, adding panels, upgrading batteries, feeling smug about my independence. Then I dragged home a proper MIG welder – a real tool for real work – and my system surrendered faster than a politician's promise.
The inverter screamed in protest, the voltage plummeted, and my batteries took a beating they didn't deserve. I'd hit the ceiling of what my 24V system could deliver, and it was nowhere near what I needed for a life of true self-reliance.
Maybe for you it was the well pump that wouldn't start, the shop equipment that sat useless during critical projects, or the bone-deep anxiety of watching your battery bank drain faster than expected during those three sunless days. Whatever your breaking point, you've recognized the truth that most solar "experts" won't tell you: 12V and 24V systems are compromises that eventually fail serious off-gridders.
THE REALIZATION: 48V IS THE STANDARD FOR INDEPENDENCE
Here's the ugly truth the solar salesmen don't emphasize: voltage matters more than you've been told. It's not just about storing energy – it's about delivering it when and where you need it without crippling losses or dangerous overheating.
The revelation hits you like a thunderbolt: Professional installers use 48V systems for a reason. Utility companies transmit power at thousands of volts for the same fundamental reason. Physics doesn't care about your budget or convenience – it rewards those who respect its principles and punishes those who ignore them.
At 48 volts, everything changes:

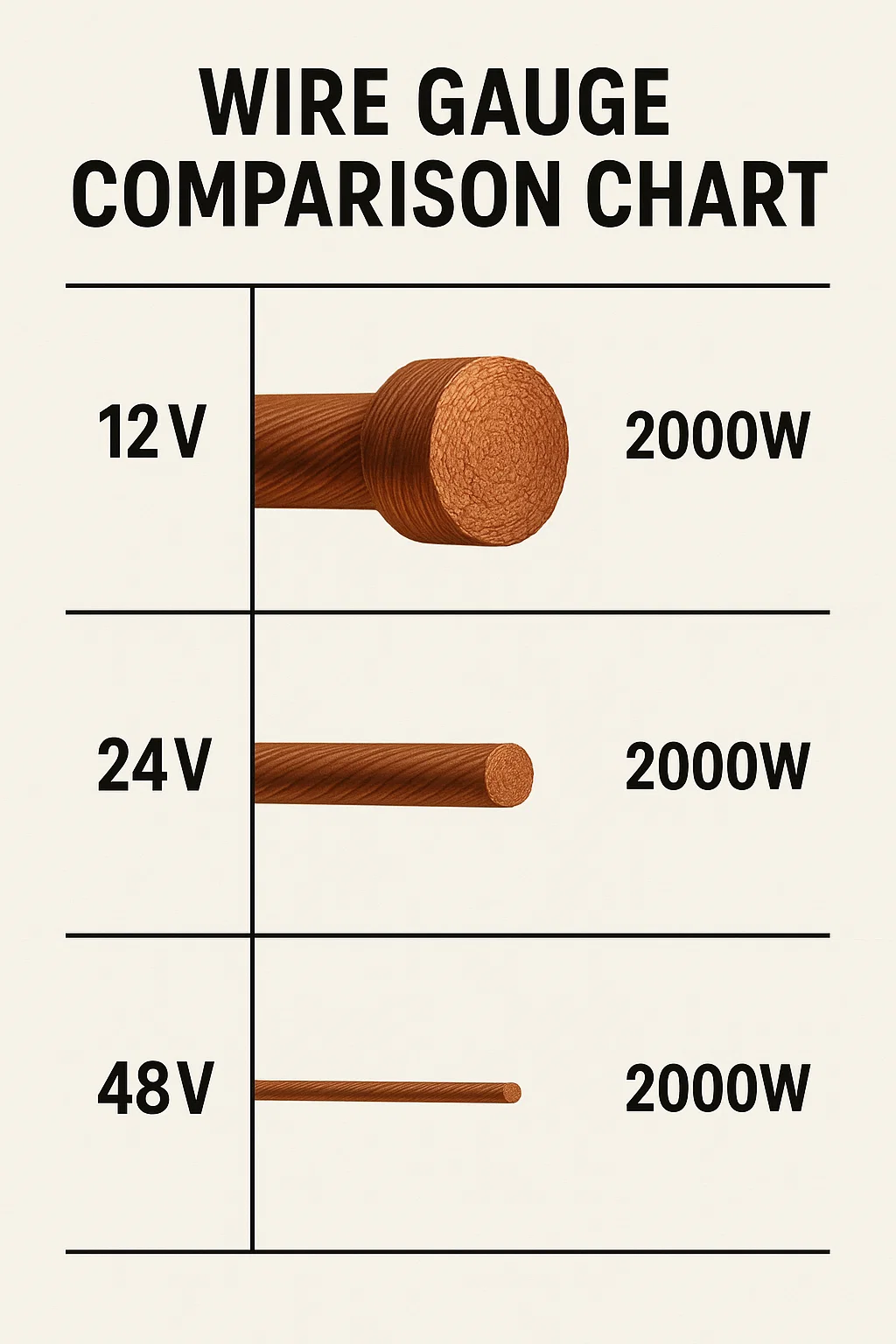

- Wire size requirements drop dramatically: A system carrying the same power at 48V versus 12V requires 1/4 the copper. That's not incremental – it's transformative.
- Voltage drop becomes manageable: Your power stays strong even at the furthest reaches of your property.
- Efficiency skyrockets: Lower current means lower resistance losses throughout your system.
- Inverter options expand: Most serious off-grid inverters are designed primarily for 48V systems.
But this knowledge comes with a burden. You've invested in your current setup. You've spent hours wiring, mounting, configuring. The prospect of starting over feels like surrender.
THE RISING CONFLICT: THE CHALLENGE OF UPGRADING
The path forward isn't simple. Every component in your system was selected for a specific voltage. Changing that fundamental parameter means questioning everything – your charge controllers, your battery configuration, your inverter, even your wiring.
The solar "experts" offer no clear consensus. Some tell you to start over completely. Others suggest half-measure hybrids that sound reasonable but collapse under scrutiny. Forums are filled with conflicting advice from weekend warriors who've never actually built a system that could power real work.
Even the manufacturers' specs seem deliberately obscured, written to protect their liability rather than guide your decisions. And the cost – Jesus, the cost of scrapping functional components for new ones rated for higher voltage – feels like paying twice for something you should have been sold correctly the first time.
THE CHOICE: COMMIT TO THE UPGRADE OR REMAIN CONSTRAINED
You stand at the crossroads. Continue adding band-aids to a system architected for compromise, or rebuild with a foundation designed for real independence.
This isn't just about watts and volts – it's about whether you're building a plaything or a life-support system. Whether you're dabbling in self-sufficiency or committing to it. The 48V decision separates the dilettantes from the dead serious.
For me, the choice crystallized when I calculated the cost of lost opportunities – projects abandoned, work delayed, dependence prolonged – all because I'd tried to save money on the core system that everything else relied upon. The real expense wasn't the upgrade – it was the limitations I'd accepted for years beforehand.

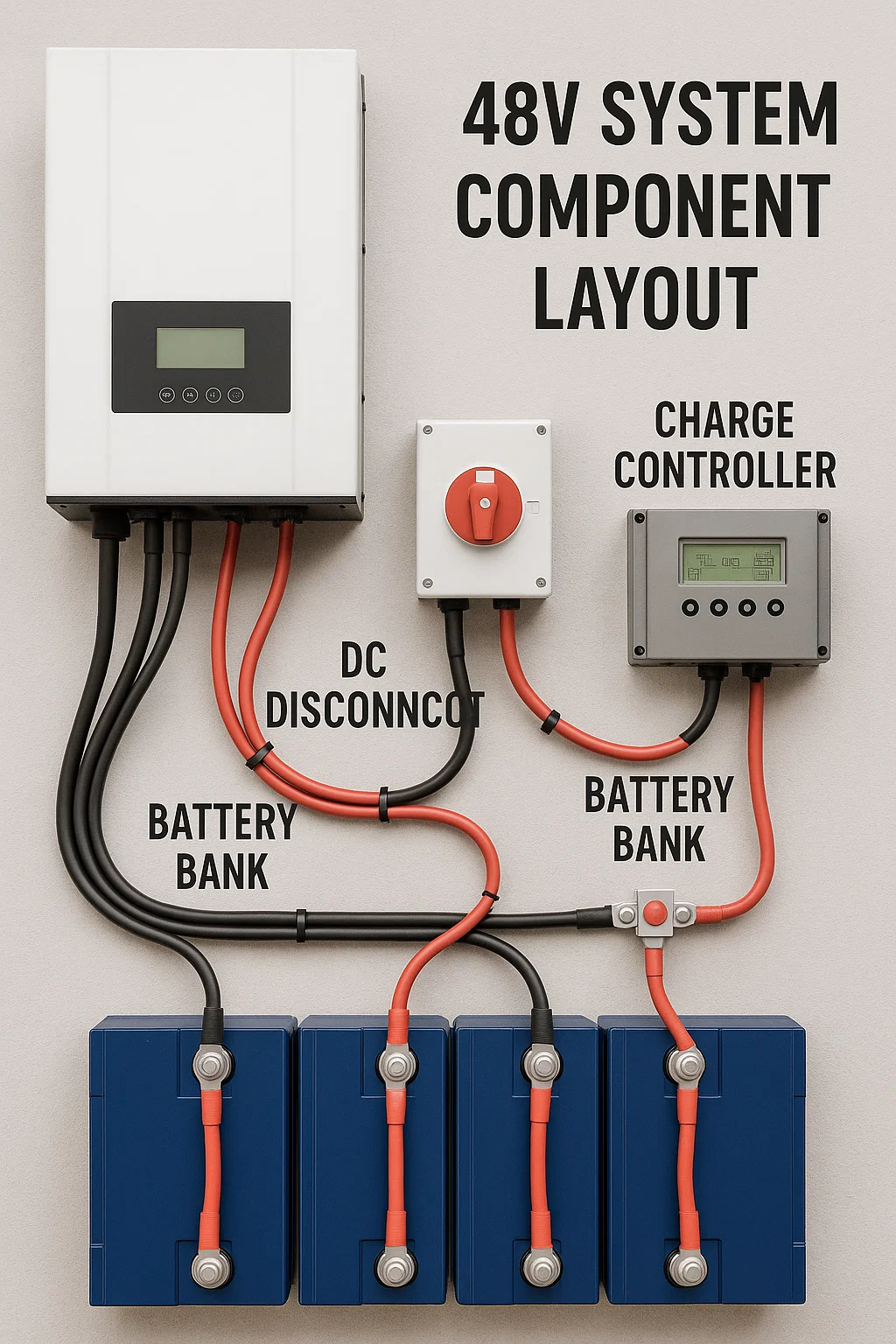

THE TRIAL BY FIRE: BUILDING YOUR 48V SYSTEM
Committing to 48V means learning a new language. The components and configurations differ. The safety requirements escalate. The margin for error shrinks.
Here's your battle plan:
48V Battery Bank Configuration
LiFePO4 (Lithium Iron Phosphate):
- Connect 16 cells in series (each 3.2V nominal) to achieve 51.2V nominal
- Advantages: Lighter weight, deeper discharges (up to 80%), longer lifespan
- Brands worth the investment: Battleborn, Victron, Pylontech
Lead Acid (if budget constrains):
- Connect 24 cells (2V each) or 8 batteries (6V each) or 4 batteries (12V each) in series
- Advantages: Lower upfront cost, better cold weather performance
- Limitations: Heavier, shorter lifespan, limited to 50% discharge
Critical Specification: Battery bank should be sized to at least 200Ah for meaningful capacity in a 48V system
Inverter Selection (The Heart of Your System)
48V opens the door to truly capable inverters. Don't skimp here – this is the component that transforms stored DC power into usable AC power.
Top-Tier Options Worth The Investment:
- Victron MultiPlus-II (3000-5000VA): Built-in transfer switch, paralleling capability
- Schneider XW Pro (5.5-6.8kW): Industrial reliability, excellent surge capacity
- Outback Radian (4-8kW): Modular design, field-serviceable
Crucial Specifications:
- Continuous output rating should exceed your expected simultaneous loads by 25%
- Surge capacity should handle at least 3x the motor-starting requirements of your largest equipment
- Pure sine wave output is non-negotiable for sensitive electronics and motor longevity
- Look for units with cooling systems designed for continuous operation
Charge Controllers (The System Regulator)
For 48V systems, MPPT (Maximum Power Point Tracking) controllers are mandatory – PWM controllers waste too much potential at higher voltages.
Key Specifications:
- Voltage rating must explicitly support 48V battery banks
- Current rating must handle your array's maximum output
- Temperature compensation is essential for consistent charging in varying conditions
Recommended Controllers:
- Victron SmartSolar MPPT (100/50 up to 250/100): Outstanding efficiency, Bluetooth monitoring
- Midnite Classic (150-250V): American-made, field-serviceable, highly configurable
- Morningstar TriStar MPPT (45-60A): Legendary reliability, passive cooling design
Wiring: The Nervous System of Your Setup
Critical Safety Components:
- DC disconnect rated for 48V systems
- Properly rated fuses on EVERY major circuit path
- Cable sizing based on maximum current AND distance (voltage drop calculations)
Wire Gauge Guidelines (for 125A maximum current):
- 0-5 feet: 2/0 AWG
- 5-10 feet: 3/0 AWG
- 10-15 feet: 4/0 AWG
Safety Warning: A 48V system can sustain dangerous arcs if disconnected under load. NEVER remove cables from a charged battery without proper disconnection procedures.
Real-World 48V System: 5kW Homestead Setup
This configuration powers a complete off-grid homestead, including shop tools, well pump, and standard household needs:
- Solar Array: 16 panels (400W each) = 6.4kW total
- Battery Bank: 48V 400Ah LiFePO4 (19.2kWh usable capacity)
- Inverter: 6kW continuous/15kW surge capacity
- Charge Controller: 150V 80A MPPT
- Total Cost Range: $12,000-$18,000 (component quality dependent)
- System Lifespan: 15+ years with proper component selection
THE FIRST VICTORY: SYSTEM PERFORMANCE BEYOND EXPECTATIONS
The first time your new 48V system handles a load that would have crippled your old setup, you'll feel it. That solid, unwavering voltage. The quiet confidence of components operating within their design parameters rather than at their limits.
For me, it was firing up the welder, the air compressor, and shop lights simultaneously – watching the battery monitor barely register the draw that would have sent my old system into alarm state. It wasn't just about having more power – it was about having reliable, consistent power that didn't flinch under demand.
The victory isn't measured just in watts – it's measured in the projects you can now undertake, the capabilities you've unlocked, the independence you've secured. Your system is no longer the limiting factor in what you can accomplish.
THE TRANSFORMATION: FROM SYSTEM BABYSITTER TO EMPOWERED BUILDER
With a properly designed 48V system, the psychological shift is profound. You stop thinking about power as a scarce resource to be conserved and start seeing it as an abundant tool to be deployed.
You're no longer the anxious caretaker of a fragile system, constantly monitoring state-of-charge and calculating whether you can run this or that appliance. You become the commander of a robust power platform that enables rather than constrains.
The mental energy previously spent on power management gets redirected to actual productive work. Creativity flourishes when it's not bounded by system limitations. Independence deepens when your core systems exceed rather than merely meet your needs.
THE CALL TO OTHERS: RAISING THE STANDARD
I'm not here to sell you solar panels or battery banks. I'm here to challenge you to stop accepting compromise in the systems that your life and work depend on.
If you're building an off-grid system capable of supporting real work and genuine independence, 48V isn't a luxury or an upgrade – it's the baseline. It's the starting point for systems designed for performance rather than mere adequacy.
You wouldn't build a house on a foundation of sand. Don't build your energy independence on the shaky foundation of insufficient voltage. The difference between struggling with power limitations and having abundant, reliable energy is often not the number of panels or batteries – it's the architecture of the system itself.
Stop listening to the weekend warriors and RV crowd. Start building systems that would make power engineers nod in silent approval.
Your independence deserves nothing less.
Considering 48V for your setup? Drop a comment below with your questions or share your experience with higher-voltage systems.
